Customizable workstations that are specifically designed to meet the unique needs of your operating environment, without any compromise. Our workstations feature a modular design that allows for easy customization of workstation sizes, layouts, tabletop materials, and accessories, enabling us to create a workstation that is perfectly optimized for your specific research, manufacturing, and pharmaceutical, requirements.
Whether you are looking to streamline your assembly process, enhance your inspection station, or improve your packaging operations, our workstations can be configured to complement the task at hand. You can be confident that you are getting a tailored solution that will enhance your manufacturing operations and help you achieve your production goals.
Technical Documents
Basic Table
Product Features
- BASIC Lab Bench Frames are constructed of tubular steel. Tables are available with a wide variety of options and accessories. Any Table can be made mobile by adding casters.
- Manual adjustment only.
Ordering Information
- Finish is standard ESD GRAY
- Contact factory for options and accessories.
- Countertops are not included.

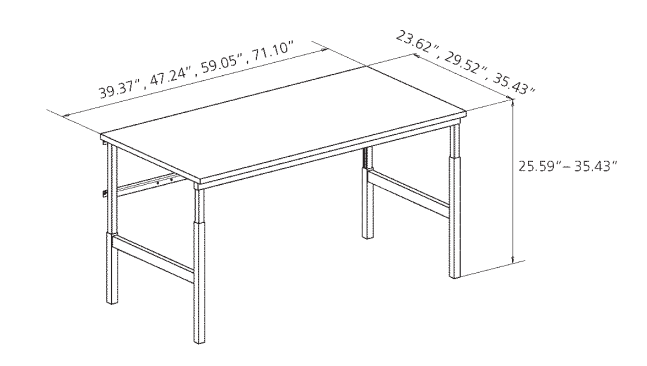

BASIC Adjustable Height Worktable Frames
| Worktable frame size W x D inches |
Worktable frame model | Max load Ibs |
|---|---|---|
| 47.24 x 29.52 | 120 35 021 | 660 |
| 59.05 x 29.52 | 120 35 022 | 660 |
| 59.05 x 35.43 | 120 35 037 | 660 |
| 70.86 x 29.52 | 120 35 023 | 660 |
| 70.86 x 35.43 | 120 35 038 | 660 |
Height adjustment from 25.59 to 35.43 inches
Sample Configurations

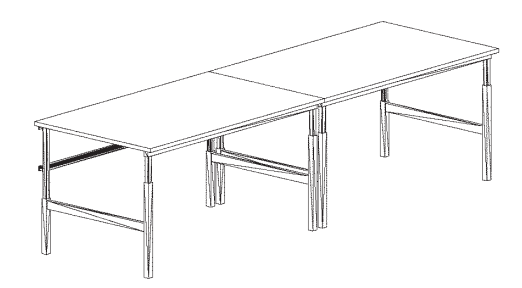

Side-by-Side Tables
Island Bench assembly with Basic Tables,
countertop mounted upright shelving with brackets,
power rails and 7300 series mobile cabinets
Concept Table
Product Features
- CONCEPT Lab Bench Frames are ergonomically designed and available with a wide variety of options and accessories. Any Table can be made mobile by adding casters.
- CONCEPT Tables are also available with a hand crank or motor adjustment.
- Our 7300/7400 Line cabinets can be suspended from CONCEPT frames 29.53"D with manual adjustment only.
Ordering Information
- Finish is standard ESD GRAY.
- Contact factory for options and accessories.
- Countertops are not included.

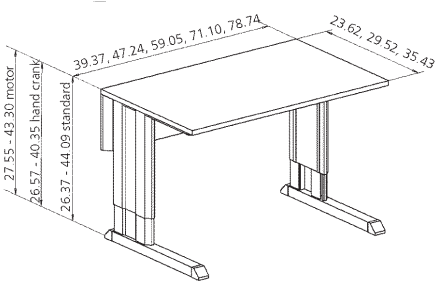

CONCEPT Adjustable Height Worktable Frames
| Worktable frame size W x D inches |
Standard table frame model | Max load Ibs | Handcrank height adjustment model | Max load Ibs |
|---|---|---|---|---|
| 39.37 x 23.62 | 100 35 015 | 440 | 101 35 015 | 440 |
| 39.37 x 29.52 | 100 35 030 | 1100 | 101 35 030 | 440 |
| 47.24 x 23.62 | 100 35 016 | 440 | 101 35 016 | 440 |
| 47.24 x 29.52 | 100 35 031 | 1100 | 101 35 031 | 440 |
| 59.05 x 23.62 | 100 35 017 | 440 | 101 35 017 | 440 |
| 59.05 x 29.52 | 100 35 032 | 1100 | 101 35 032 | 440 |
| 70.86 x 23.62 | 100 35 018 | 440 | 101 35 018 | 440 |
| 78.74 x 23.62 | 100 35 019 | 440 | n/a | n/a |
| 78.74 x 29.52 | 100 35 034 | 1100 | n/a | n/a |
| Height adjustment | 26.37--44.09 inches | 26.57--40.35 inches | ||
CONCEPT Adjustable Height Worktable Frames
| Worktable frame size W x D inches |
Motor height adjustment model | Max load Ibs |
|---|---|---|
| 39.37 x 23.62 | 103 35 115 | 660 |
| 39.37 x 23.62 | 103 35 130 | 660 |
| 39.37 x 23.62 | 103 35 116 | 660 |
| 39.37 x 23.62 | 103 35 131 | 660 |
| 39.37 x 23.62 | 103 35 117 | 660 |
| 39.37 x 23.62 | 103 35 132 | 660 |
| 39.37 x 23.62 | 103 35 118 | 660 |
| 39.37 x 23.62 | 103 35 133 | 660 |
| 39.37 x 23.62 | 103 35 119 | 660 |
| 39.37 x 23.62 | 103 35 134 | 660 |
| Height adjustment | 27.55--43.30 inches | |

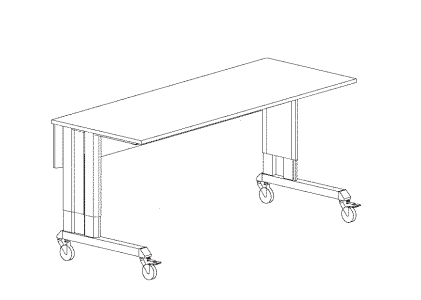

CONCEPT table with Optional casters
Sample Configurations

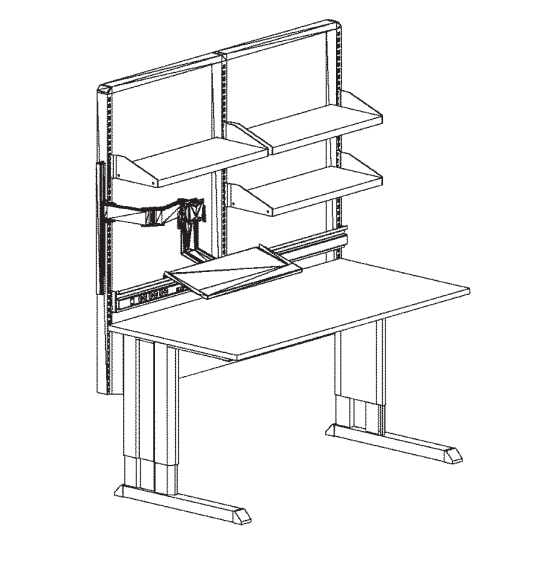

Concept Table with countertop,
uprights, shelves, brackets,
monitor arm, power rail
